Conveyor Roller
Belt Conveyor Roller
  • Belt Conveyor RollerBelt Conveyor Roller

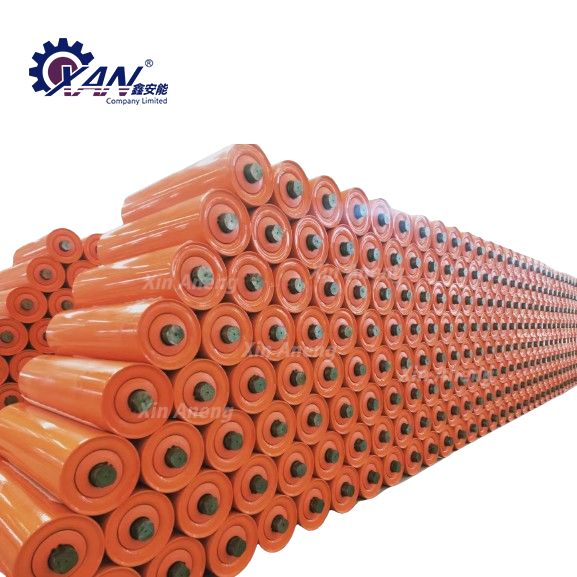

Belt Conveyor Roller

As one of the most famous Belt Conveyor Roller manufacturers and factories. we focus on production management, down to the cleanliness of the factory floor. We believe that production management reflects product quality. Only by holding ourselves to strict standards can we produce high-quality products and serve our customers effectively.

Since 1990, Mr. Guo has been dedicated to the bulk material handling industry, leading the factory to rapid growth. In just 5 years, we achieved what others took over 20 years to accomplish. Mr. Guo steadfastly avoided investments in real estate, cars, or any other ventures. For 33 years, he has poured all his efforts and energy into perfecting every conveyor roller.

Belt conveyor roller refers to the rollers or idlers that are used in a belt conveyor system. A belt conveyor is a mechanism that transports materials continuously using an endless belt that runs over two or more pulleys/rollers. The belt conveyor roller plays a crucial role in supporting the conveyor belt and guiding it along the desired path.

Types of Belt Conveyor Rollers:

(1). Return Roller/Idler: Used to support the underside of the conveyor belt on the return path.

(2). Impact Roller/Crusher Roller: Located at the loading point to withstand the impact of falling material onto the belt. These rollers are often designed with thicker walls and/or special materials to handle the impact.

(3). Troughed Roller/Idler: Used to create a trough shape in the belt to contain the material being transported.

(4). Transition Roller/Idler: Used to transition the belt from a flat to a troughed configuration or vice versa.

(5). Snub Roller/Pulley: Small rollers located at the end of the conveyor to redirect the belt and help maintain belt tension.

(6). Carrying Roller/Idler: Located under the loaded portion of the conveyor belt to support the weight of the material being transported.

Diameter
mm

Length (mm)

Bearing No.

89

180

190

200

235

240

250

275

280

305

204

215

350

375

380

455

465

600

750

950

1150

108

190

200

240

250

305

315

360

375

380

204.205.305.306

455

465

525

530

600

700

750

790

800

950

1150

1400

1600

133

305

375

380

455

465

525

530

600

670

205.305.306

700

750

790

800

900

950

1000

1100

1150

1400

1600

1800

2000

2200

159

375

380

455

465

525

530

600

700

750

305.306.308

790

800

900

1000

1050

1100

1120

1150

1180

1250

1400

1500

1600

1700

1800

2000

2200

2500

2800

3000

3150


Maintenance of Belt Conveyor Rollers:

Regular maintenance of belt conveyor rollers is important to ensure smooth operation and avoid downtime. This includes inspection for wear, replacement of worn-out rollers, cleaning of rollers to remove debris, and adjustment of roller alignment.

Safety Considerations:

When working with belt conveyor systems, it is crucial to follow safety procedures to prevent accidents. This includes wearing appropriate protective equipment, staying clear of moving parts, and ensuring the conveyor is properly guarded and locked out before performing maintenance or repairs.
