Conveyor Idler
HDPE Idler Roller
  • HDPE Idler RollerHDPE Idler Roller
  • HDPE Idler RollerHDPE Idler Roller
  • HDPE Idler RollerHDPE Idler Roller
  • HDPE Idler RollerHDPE Idler Roller
  • HDPE Idler RollerHDPE Idler Roller

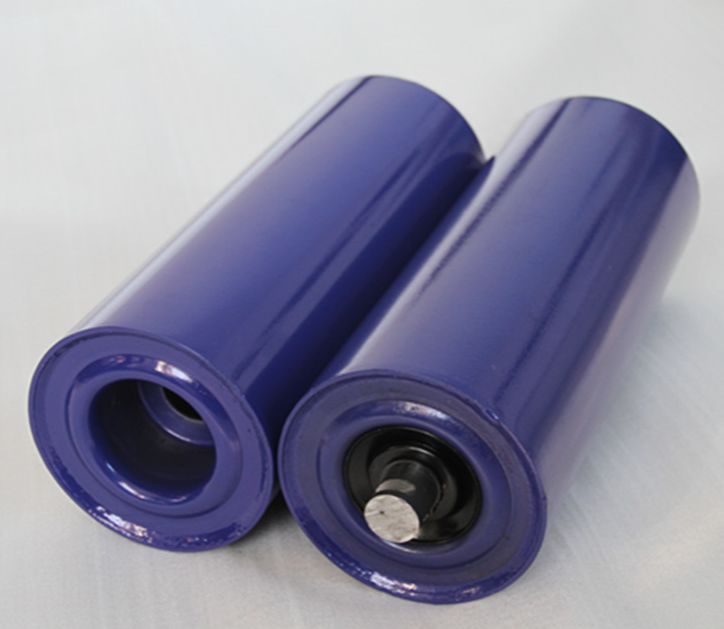

HDPE Idler Roller

By using better raw materials, bearings, and seals in production, Hubei Xin Aneneng's HDPE Idler Roller can meet your higher quality requirements. Our quality control is not only reflected in the design, but also in the procurement of raw materials, the skills and quality training of workers, the accuracy of production equipment, etc. XAN primarily undertakes large-scale projects domestically, with precision and excellence being our strict requirements for HDPE Idler Roller production. Xin Aneng consistently treats excellence as a habit.

Xin Aneng's HDPE Idler Roller are rollers made of High Density Polyethylene (HDPE) material. It has the following features and advantages:

1. Wear resistance: Xin Aneng's HDPE Idler Roller have excellent wear resistance and can maintain stable performance under long-term high-intensity use, effectively extending service life and reducing maintenance costs.


2.Chemical corrosion resistance: The polymer polyethylene material has excellent chemical corrosion resistance and can show stable and reliable performance in acid, alkali and humid environments.

Impact resistance and scratch resistance: Xin Aneng's HDPE Idler Roller also have good impact resistance and scratch resistance, which can effectively protect conveyed materials and conveying system equipment in various complex working conditions.


2. Environmental protection: HDPE material itself is non-toxic, odorless and meets environmental protection requirements. It can be used in special industries such as food and medicine to ensure the safety and hygiene of items.



Xin Aneng's HDPE Idler Roller can not only be used for the transportation and storage of conventional materials, but are also widely used in special industries such as medicine to ensure the safety and hygiene of items.  Xin Aneng's HDPE Idler Roller also show their unique advantages and can withstand large cargo loads and ensure efficient operation.


In addition, after years of practice and exploration, the production process of Xin Aneng's HDPE Idler Roller has been gradually improved and optimized to provide high-quality, high-performance products.


Standard: CEMA, SABS, DIN, JIS, AS standards are available, as well as OEM service.

Belt


Width
Type Dimension Bearing
ΦD ① d L1 L2 A K B W
400 CR-400 Φ89.1 Φ20 145 175 153 8 11 14 6204 2RS
450 CR-450 165 195 173
500 CR-500 180 210 188
600 CR-600-1 210 240 218
650 CR-650 225 255 233
600 CR-600-2 Φ114.3 210 240 218
750 CR-750 265 295 273
800 CR-800 275 305 283
900 CR-900 315 345 323
1000 CR-1000 Φ139.8 Φ 25 350 390 360 11 15 18 6205 2RS
1050 CR-1050 370 410 380
1200 CR-1200 420 460 430
1400 CR-1400 Φ165.2 Φ30 500 540 510 22 6206 2RS
1600 CR-1600 580 620 590
1800 CR-1800 Φ 35 650 690 660 25 6207 2RS
2000 CR-2000 730 770 740
2200 CR-2200 Φ 40 800 840 810 31 6208 2RS
2400 CR-2400 880 920 890

Our Factory:

Our factory has a comprehensive quality assurance system. Before production begins, we will submit a comprehensive quality assurance plan for this project. This plan includes quality assurance procedures, organizational methods, qualifications of involved personnel, and controls for all activities affecting project quality such as design, procurement, manufacturing, transportation, installation, commissioning, and maintenance. We have dedicated personnel responsible for quality assurance activities.

Our quality assurance plan primarily defines the following points:

1.Inspection and control of equipment;

2.Control of purchased equipment or materials;

3.Control of materials;

4.Control of special processes;

5.On-site construction supervision;

6.Quality witness points and schedules.
