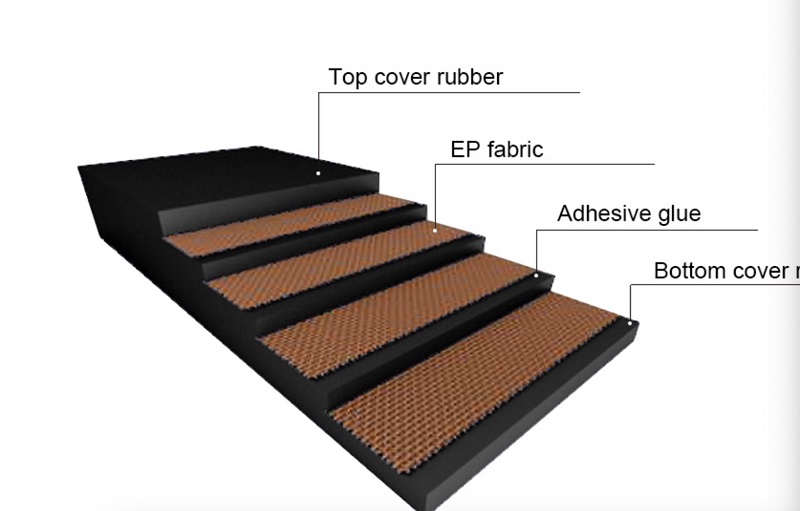

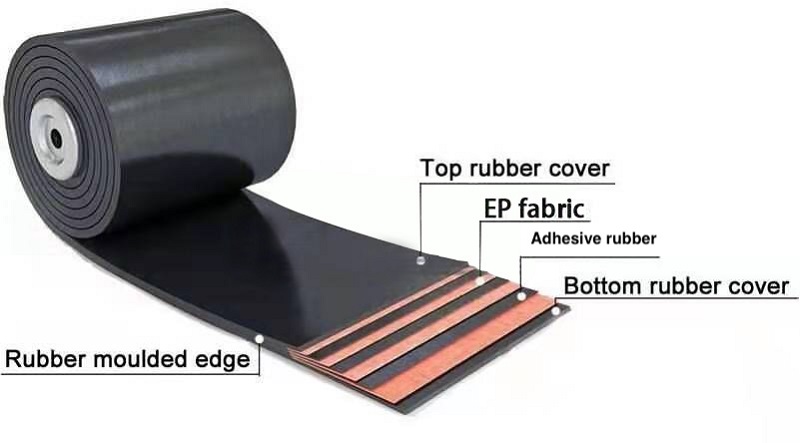

In the field of modern industrial conveying, EP conveyor belts (polyester-nylon interwoven conveyor belts) have become an ideal choice for medium-to-long distance and medium-to-high load conveying scenarios, thanks to their unique material combination and excellent performance. With a core made of interwoven warp polyester fibers (PET) and weft nylon fibers (PA), and covered with wear-resistant rubber, they inherit the high-strength properties of polyester fibers while integrating the flexibility of nylon fibers, thus being widely used in industries such as mining, building materials, and ports.
Material Properties: The Structural Advantage of "Balancing Rigidity and Flexibility"
The core competitive advantage of EP conveyor belts stems from their "rigid-flexible" material design. High-modulus polyester fibers are used in the warp direction, endowing the belts with strong tensile resistance. The elongation under the rated load can be controlled within 4%, far lower than that of traditional nylon conveyor belts, which ranges from 10% to 15%. This means that for medium conveying distances (300 meters to 5 kilometers), there is no need for frequent adjustment of tensioning devices, reducing maintenance hours by approximately 20 hours per year.
Nylon fibers in the weft direction provide excellent flexibility, allowing the conveyor belt to easily fit into trough idlers to form a trough angle of over 30°, reducing material spillage by 15%-20% compared to ordinary flat belts. The core and cover rubber are tightly bonded through a special dipping process, with the adhesion strength between fabric layers reaching over 4.5N/mm and the adhesion between the cover rubber and the core not less than 3.2N/mm, ensuring no inter-layer peeling even under a 500N impact force.
The cover rubber uses a wear-resistant formula: the standard model has an Akron abrasion value of ≤100mm³, capable of withstanding continuous friction from 8,000 tons of materials per day; the heavy-duty model has a tensile strength of 24MPa, which is particularly suitable for conveying angular ores, with a service life 60% longer than ordinary rubber covers.
Application Scenarios: Adapting to Complex Working Conditions Across Industries
In the mining industry, EP conveyor belts perform prominently. After an open-pit iron mine replaced traditional steel cord belts with EP-200 conveyor belts (with a strength of 400N/mm), not only was the initial investment cost reduced by 35%, but the energy consumption of the drive motor also decreased by 12% due to a 40% reduction in the belt's weight. The strength of its hot vulcanized joints can reach 90% of the original belt, reducing monthly downtime due to failures from 8 hours to 2 hours. In underground mines, flame-retardant and anti-static EP conveyor belts (compliant with MT/T 914 standards) can operate safely in environments with gas concentrations below 0.5%, and their bending radius is only 6 times their width, making them suitable for layout in narrow roadways.
The high-temperature environment in the building materials industry further highlights their advantages. The temperature of cement clinker conveying lines often reaches 120-150°C, and ordinary EP conveyor belts can achieve a service life of 24 months under such conditions, 4 times that of ordinary nylon conveyor belts (6 months). This is due to the thermal stability of polyester fibers—after 1,000 hours of continuous operation at 150°C, their strength retention rate remains above 85%, while nylon fibers lose 40% of their strength under the same conditions.
In humid environments, the water resistance of EP conveyor belts is remarkable. When conveying coal with 20% moisture content at port bulk terminals, the loss rate of their inter-layer adhesion strength is less than 5%, while traditional cotton canvas belts lose 30% of their strength due to mildew under the same conditions. Equipped with diamond-patterned cover rubber, their conveying angle can reach 18°, 50% higher than that of ordinary flat belts, and the daily conveying capacity of a single line is increased to 12,000 tons.
Cost Advantages: Economy Throughout the Entire Lifecycle
The economy of EP conveyor belts runs through their entire lifecycle. During initial selection, precise matching can be done according to scenarios: for scenarios within 1 kilometer and with a load of <500t/h, EP-100 (with a strength of 200N/mm) is sufficient, with a procurement cost 25% lower than that of EP-200; for scenarios over 3 kilometers and with a load of >1000t/h, EP-300 (with a strength of 600N/mm) is recommended. Although the initial investment is 30% higher, the 10-year lifecycle cost is reduced by 28%. In terms of maintenance costs, hot vulcanization joint technology can extend joint life to 3,000 hours, three times that of mechanical joints (1,000 hours).
Selection Recommendations: Maximizing Value by Matching Needs
When selecting EP conveyor belts, focus on three core indicators:
1.Strength grade: For example, EP-160 (320N/mm) is suitable for medium loads, and EP-300 (600N/mm) is suitable for heavy loads;
2.Cover rubber thickness: For sharp materials, choose 6mm top rubber + 3mm bottom rubber; for ordinary materials, 4mm top rubber + 2mm bottom rubber is optional;
3.Special treatments: For high-temperature environments, choose EPDM rubber resistant to 180°C; for humid environments, choose anti-slip patterned rubber; for flammable and explosive environments, choose flame-retardant and anti-static rubber.
EP conveyor belts, with their characteristics of high strength, low elongation, temperature resistance, and water resistance, have achieved a "balance between performance and cost" in industrial conveying. Whether in mines, cement plants, or ports, choosing a properly matched EP conveyor belt can significantly improve conveying efficiency, reduce operating costs, and serve as a reliable asset in production lines.
-
