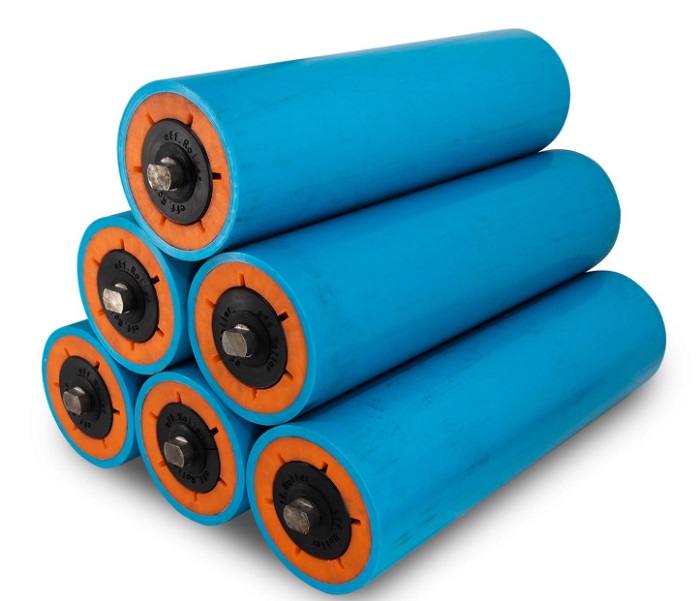

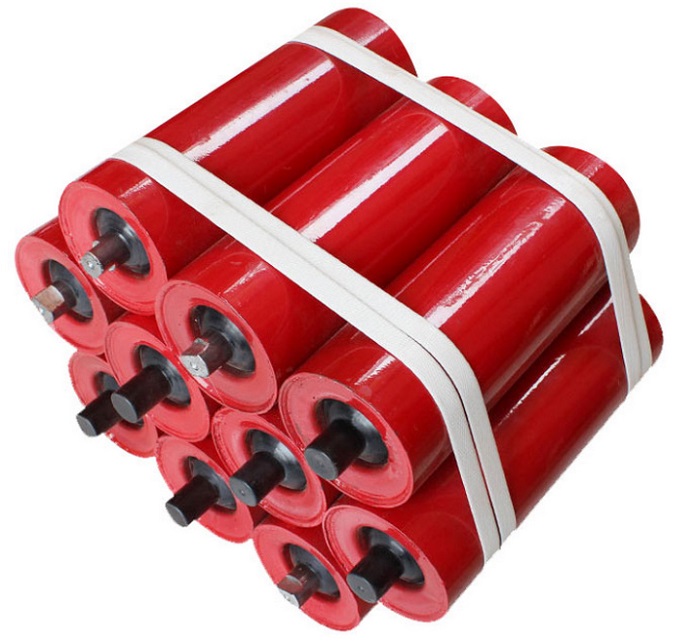

As a core load-bearing component of belt conveyors, the assembly quality of idler rollers directly determines the operational efficiency, energy consumption, and safety of the conveyor system. To prevent unqualified products from entering application scenarios, comprehensive post-assembly inspection has become a critical link in the production cycle, requiring multi-dimensional verification to ensure each idler roller meets industry standards and practical requirements.
Appearance inspection serves as the first checkpoint in quality control. Inspectors need to combine visual inspection with measuring tool verification, focusing on checking the roller surface for defects such as dents, scratches, and rust. They also verify whether the bearing housings and sealing rings at both ends of the roller are installed evenly without misalignment, and whether the torque of fasteners meets design requirements (usually rechecked with a torque wrench, with a tolerance of ±5%). Any appearance defects not only affect product aesthetics but also may form stress concentration points, shortening the service life of idler rollers. Therefore, appearance inspection must achieve zero omission.
Core performance testing focuses on rotational flexibility and stability. A torque tester is used to measure the no-load rotational torque, which must be ≤1.5 N·m. Meanwhile, the free rotation time is recorded, requiring continuous rotation for ≥30 seconds without external interference to ensure low friction resistance and energy consumption during operation. In addition, a radial runout detector is used to test the radial runout error of the roller, with a tolerance of ≤0.3 mm. Excessive runout will cause periodic vibration of the conveyor belt, intensify wear, and even lead to deviation, endangering the safety of the conveyor system.
Strength testing simulates actual working conditions to verify load-bearing capacity. In the static load test, 1.5 times the rated load is applied to the middle of the idler roller and maintained for 1 hour, checking for permanent deformation of the roller or damage to the bearings. The dynamic load test uses a fatigue testing machine to apply cyclic loads of the rated load for 1 million times, and the rotational performance is rechecked after the test. Only by passing the strength test can idler rollers ensure stable operation in long-term heavy-load environments and avoid equipment failures caused by insufficient strength.
Sealing performance testing targets complex application scenarios. Idler rollers are often used in dusty and humid environments such as mines and ports. They need to be fully immersed in water for 30 minutes; after disassembly, inspectors check whether the bearing interior has water or dust ingress, and simultaneously test the change in rotational torque (increase ≤0.3 N·m). Qualified sealing can extend bearing service life, reduce subsequent maintenance costs, and is a key guarantee for idler rollers to adapt to harsh environments.
The comprehensive post-assembly inspection of idler rollers is a full-dimensional verification, covering from basic appearance to core performance, and from static strength to dynamic sealing. Strict implementation of inspection standards not only ensures the qualification of each product but also lays a solid foundation for the safe and efficient operation of the belt conveyor system, reducing operation and maintenance costs and improving production efficiency. In the current era of pursuing refinement in manufacturing, the rigor of this link is a crucial embodiment of quality control.
-
