In industrial scenarios such as mining and coal washing & coking, the loading points of belt conveyors are always subjected to the impact of falling materials. The impact idler is precisely the core component that safeguards the safety of conveyor belts. This component, specifically designed for loading points, converts the impact of materials into controllable buffering through sophisticated structural design and material selection, making it a crucial part in extending the service life of conveyor systems.

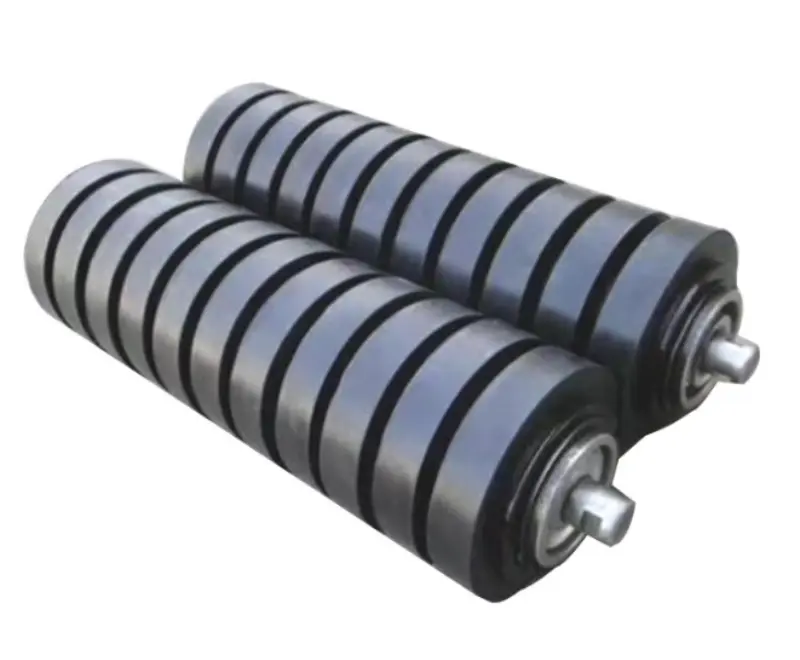

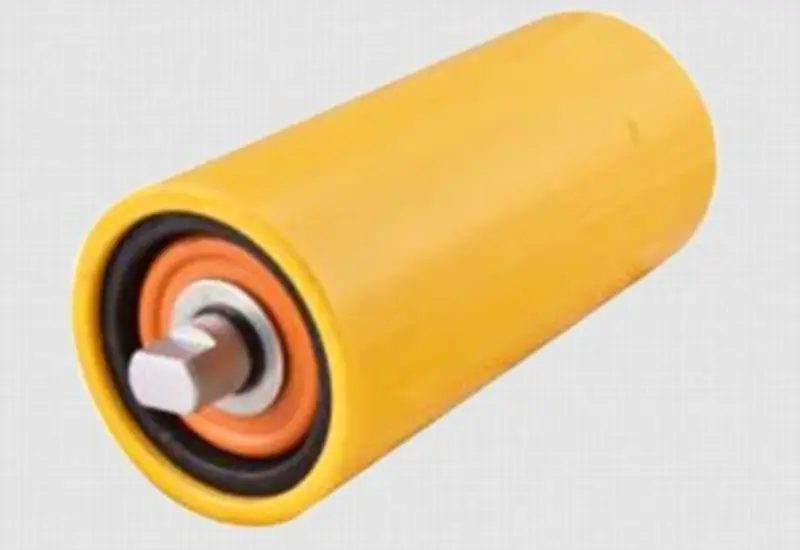

The core advantage of the impact idler stems from its multi-layered buffering structure design. The basic framework uses Q235 steel pipes as the roller body, with 45# steel shafts and bearings of brands like HRB installed at both ends to ensure load-bearing strength. The outer layer is wrapped with wear-resistant elastic materials; common rubber rings are fixed by welding high-strength steel retainers. Some high-end models adopt polymer composite materials, which have mechanical properties close to those of bronze and only half the weight of ordinary steel idlers. Advanced designs further integrate spring buffering and airbag adjustment systems. For example, a patented technology combines guide rod springs with multi-stage buffers, which can adaptively adjust according to the impact force. This not only prevents hard objects from tearing the conveyor belt but also reduces material splashing.
Performance parameters directly determine the adaptability of the impact idler. The standard diameter ranges from φ63.5mm to φ159mm, and the length matches conveyor belts with a width of 500-2000mm, capable of withstanding an impact load of 3-10 tons per square meter. The sealing system adopts a nylon labyrinth design, which can resist humid and corrosive environments. Combined with self-lubricating bearings, the operating resistance is reduced by 30%, and the service life can reach 3-5 times that of ordinary idlers. Some high-quality products can even exceed the 30,000-hour operation milestone. Its radial runout is controlled within 0.7mm, effectively preventing the conveyor belt from deviation and wear caused by uneven stress.
Scientific selection of impact idlers requires consideration of multiple factors. Material characteristics are the primary consideration: for conveying large ore blocks, large-diameter and high-strength models should be selected; for corrosive materials, polyurethane or rubber materials are preferred. The loading environment is also critical: in humid mines, the sealed and waterproof design should be enhanced; in scenarios with large drop heights, it is recommended to use buffer bed components in combination. Maintenance cannot be ignored either. It is necessary to regularly clean the accumulated materials on the surface and lubricate the bearings. When wear of rubber rings or seal failure is detected, timely replacement is required to maintain optimal buffering performance.
From underground coal mines to chemical workshops, impact idlers, with their precise buffering design and reliable performance, have become an indispensable "protective barrier" for belt conveyor systems. While reducing maintenance costs, they provide stable support for industrial material handling.
