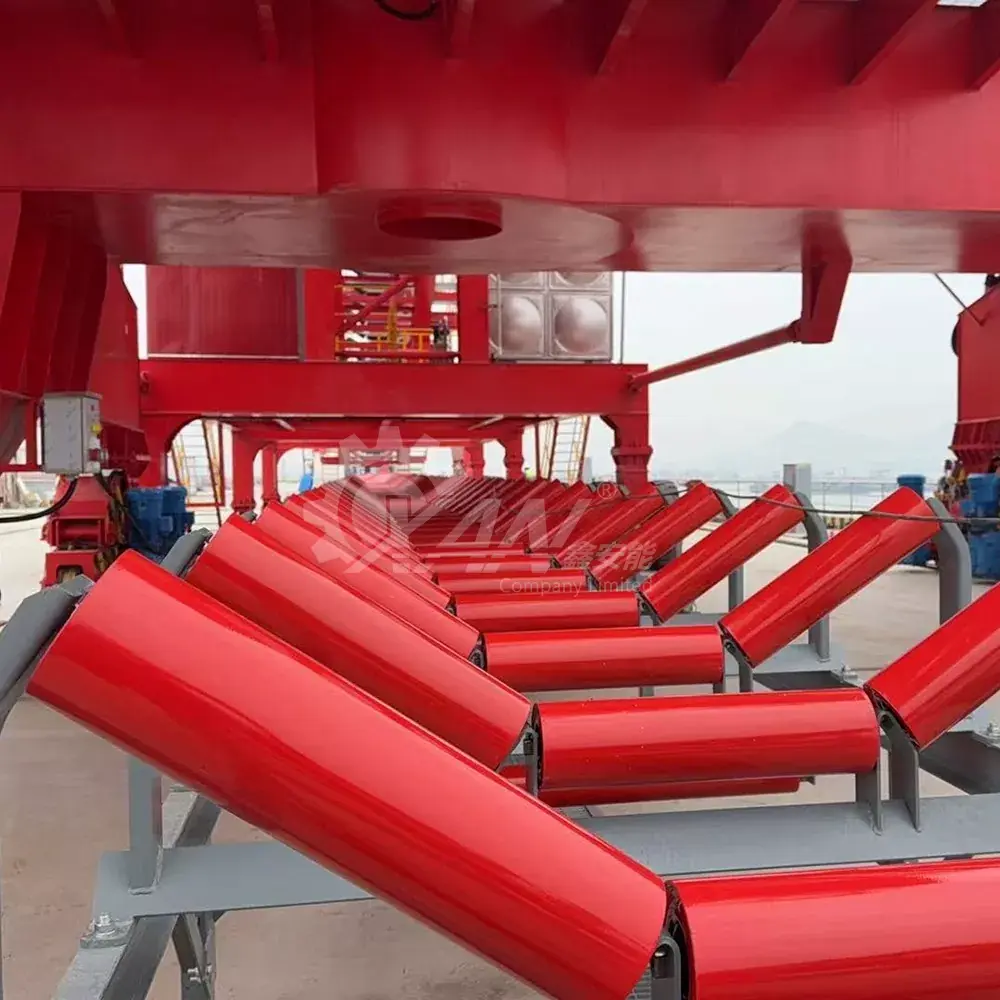

Troughing Idler Sets

A troughing idler set supports the loaded conveyor belt in a trough-shaped arrangement. Its rollers and frame must be selected together to match the belt geometry, loading and conveyor structure. Xin Aneng lists trough idler rollers and conveyor frames in its existing product range. Send the complete station drawing when your enquiry requires an assembly rather than individual replacement rollers.

Applications

Carrying sections of mining, aggregate, cement and port conveyors. Loading and transition zones may require a different support arrangement and should be identified separately in the enquiry.

Main Advantages

Assembly interfaces reviewed together

Roller dimensions, shaft ends, frame slots and mounting centres are reviewed as a matching arrangement.

Clear component scope

Specify whether you need rollers only, frames only or a complete station. Supply of the requested assembly is confirmed during quotation.

Project and replacement enquiries supported

Send the station drawing for a new conveyor or verified dimensions for an existing assembly to establish the required geometry.

Troughing Idler Sets Selection and Enquiry

How to select the right product

Provide belt width, trough angle, roller count, roller diameter and length, shaft-end details, frame drawing, mounting centres and station spacing. Include belt speed, conveyed material, loading and the location in the conveyor. Confirm whether the frame is inline or offset and identify any coating requirement. Do not infer the trough angle or mounting dimensions from a photograph alone.

Frequently Asked Questions

What is the difference between a troughing roller and an idler set?

A roller is an individual rotating component. An idler set is an arrangement of rollers and supporting frame components; the exact items included must be stated in the quotation.

Can I order replacement rollers for an existing troughing set?

Yes, submit the roller dimensions, shaft ends and frame interface for review. Check all positions in the set rather than assuming every roller is identical.

Which trough angle should I specify?

Use the approved conveyor design or existing station drawing. Belt characteristics, load and conveyor geometry must be considered before changing the angle.

Request a Troughing Idler Set Quote

Send the station drawing, belt width, trough angle, quantity and required supply scope to [email protected].

WhatsApp: +86 156 1588 7895
Website: www.x-conveyor.com
