Conveyor belts are most extensively utilized in the mining industry—whether in terms of application scale, usage volume, or core supporting role in the industry, they far exceed other fields. Choosing the right conveyor belt for mining operations requires integrating factors like material characteristics, environmental conditions, equipment parameters, safety standards, and cost efficiency. There are six steps to be concerned as follows.
1. Start with Material Characteristics
Material properties directly determine key belt performance (wear resistance, impact resistance, etc.):

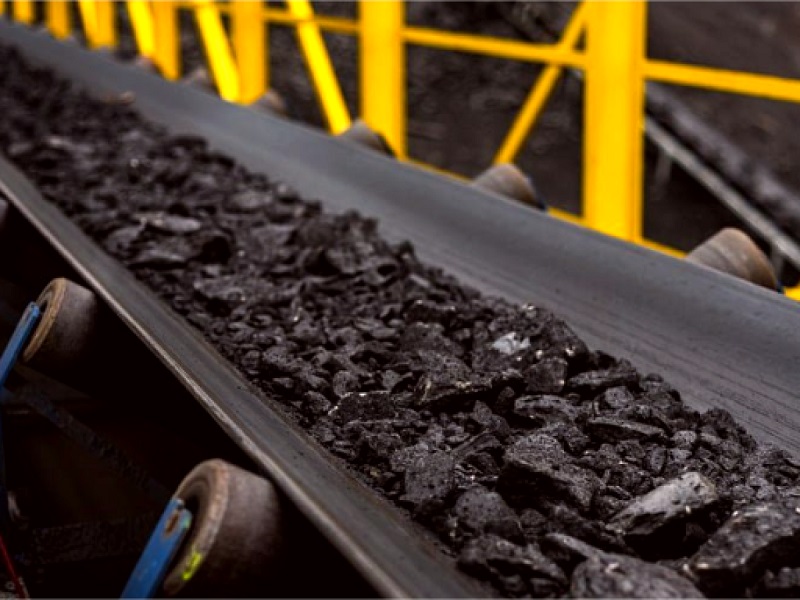

●Type: Use standard wear-resistant belts for low-wear materials (coal, soft rock); opt for high-wear-resistant cover rubber (e.g., with carbon black/ceramic particles) and anti-tear layers (steel mesh) for hard, angular materials (iron ore, granite).
●Particle/Lump Size: Prioritize sealing to prevent spillage for fine materials (coal powder); enhance impact resistance (cover rubber ≥10mm thick, high-strength cores) for large lumps (ore >300mm).
●Moisture/Temperature: Choose anti-slip covers (diamond patterns) or anti-adhesive coatings for wet materials (mineral sludge); use high-temperature-resistant belts (e.g., EPDM rubber, 150–200°C) for hot materials (sintered ore).
2. Adapt to Mining Environment
Environmental harshness impacts belt lifespan and safety:
●Spatial Scenarios:
●Underground mines: Mandate flame-retardant, anti-static belts (compliant with standards like MT/T 914) to fit narrow roadways (typically ≤1.6m).

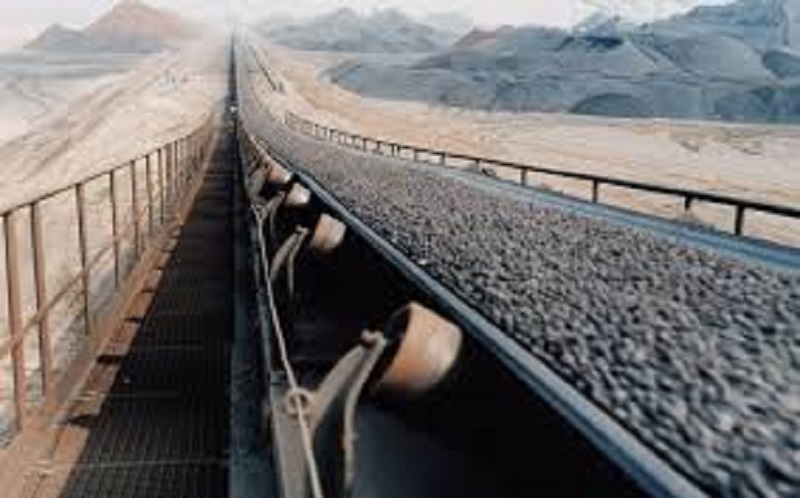

●Open-pit mines: Select weather-resistant covers to withstand UV, rain, and extreme temperatures (-30°C to 60°C).
●Corrosiveness: Use chemical-resistant belts (e.g., nitrile rubber/NBR) in mines with acidic water or chemicals.
3. Match Conveying Equipment Parameters
Belt specs must align with conveyor design:
●Capacity & Speed: For high-capacity (>1000t/h) or high-speed (>3m/s) systems, use high-strength cores (steel cord, polyester canvas/EP) to resist stretching and fatigue.
●Distance & Inclination:
●Long-distance (>1km): Prioritize steel cord belts (tensile strength ≥3000N/mm, excellent creep resistance).
●Steep inclines (>15°): Use sidewall belts (with partitions) or patterned belts (protrusions for friction).
●Drive Mode: For multi-drive systems, ensure high splice strength (e.g., hot vulcanized splices, ≥90% of original belt strength) to avoid breakage.
4. Focus on Belt Structure & Materials
●Core Materials:
●Cotton canvas (CC): Low-cost, for short-distance, low-load use (small mines).
●Nylon (NN): Flexible, fatigue-resistant, for medium-distance/load.
●Polyester (EP): Stretch/impact-resistant, for medium-to-long-distance, high-load scenarios.
●Steel cord (ST): High-strength, wear-resistant, ideal for long-distance, heavy-load operations (large open-pit mines).
●Cover Rubber:
●Hardness: 60–70° Shore for hard materials; 50–60° for soft materials (better conformity).
●Wear resistance: Prioritize low Akron abrasion values (≤100mm³), with formulations including carbon black or aramid fibers.
●Special Designs: Add steel mesh/aramid layers (anti-tear), conductive carbon black or steel wires/ceramic particles (cut-resistant) as needed.
5. Comply with Safety Standards
●China: Underground mines require MT/T 460 (flame-retardant) and MT/T 914 (anti-static).
●International: EU (EN 12882); US (MSHA certification).
6. Evaluate Costs & Maintenance
●Prioritize long-term value: High-strength, wear-resistant belts cost more upfront but last 2–3x longer than standard belts, reducing overall costs.
●Choose belts with on-site maintainability (e.g., hot vulcanization splicing) and rely on manufacturers with strong after-sales support (rapid spare parts).
In conclusion, selecting the right conveyor belt for specific mining operations is not a one-size-fits-all task but a systematic process that weaves together material traits, environmental demands, equipment specifications, structural integrity, safety compliance, and life-cycle cost considerations. Each of the six steps outlined—from analyzing material characteristics to evaluating long-term maintenance needs—plays a critical role in ensuring the belt aligns seamlessly with the unique challenges of the mining site. By following this structured approach, mining operators can move beyond reactive choices and toward proactive, tailored solutions: belts that withstand abrasive ores, thrive in extreme underground or open-pit conditions, integrate smoothly with conveyor systems, meet rigorous safety standards, and deliver lasting value through reduced downtime and lower life-cycle costs.
-
