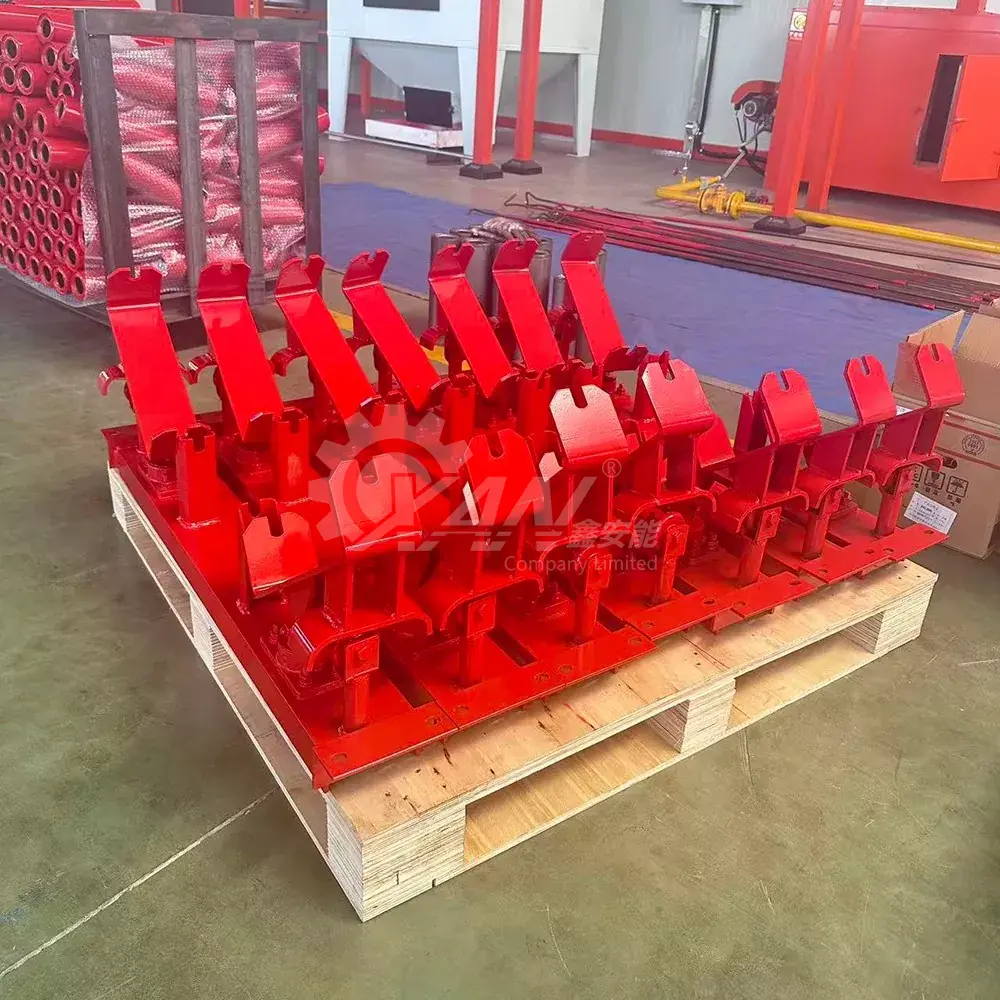

A conveyor idler frame holds the rollers in the required position and connects the idler arrangement to the conveyor structure. Xin Aneng lists conveyor roller frames, brackets and a galvanized offset trough roller frame on its website. For replacement frames or project enquiries, we review the drawing, roller interfaces and mounting requirements before confirming the proposed supply.

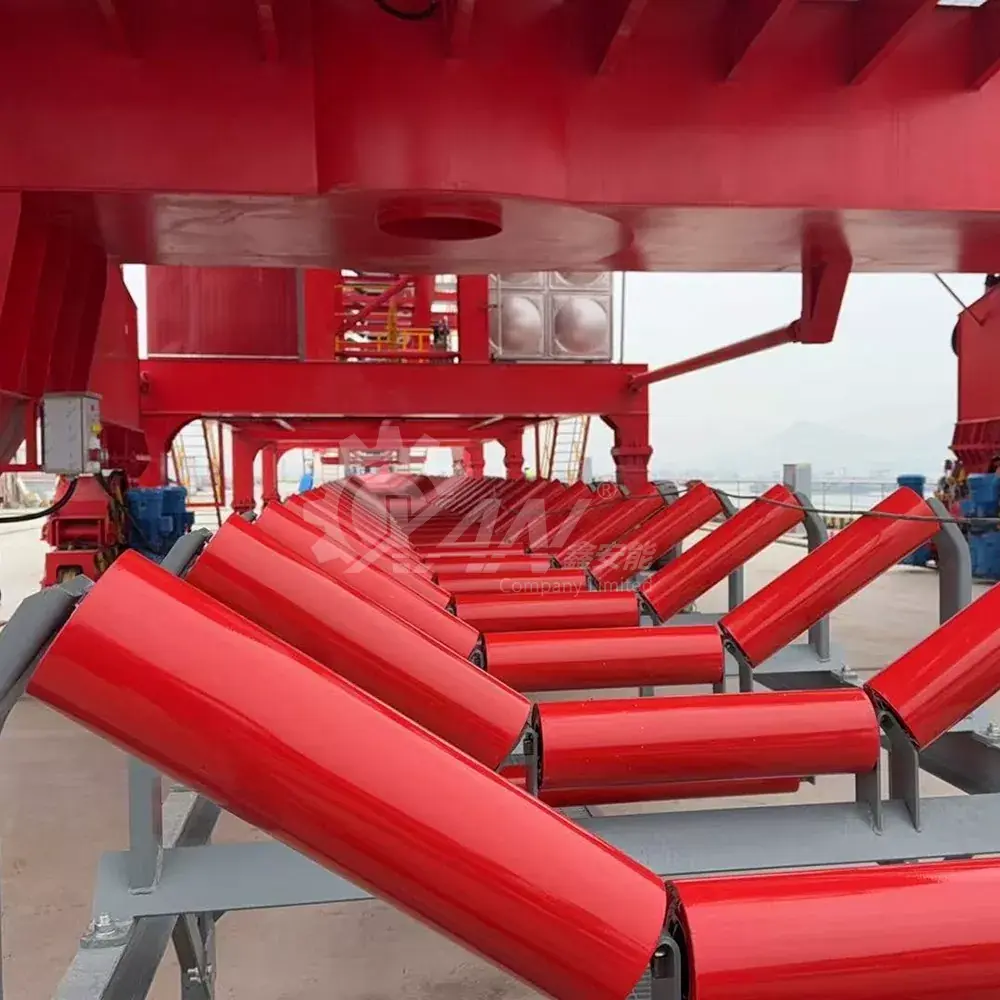

Troughing and return belt support positions on mining, aggregate, cement and port conveyors. The required configuration should be identified from the station drawing and installation location.
Mounting centres, shaft slots and support geometry are reviewed together to reduce uncertainty in replacement enquiries.
Include roller dimensions and shaft ends so the frame enquiry can be assessed against the complete idler arrangement.
Specify the required finish and environment. Available coating options and their specification must be confirmed for the order.
Provide a frame drawing with overall dimensions, mounting hole size and centres, roller shaft slot dimensions, trough angle where applicable, support height and conveyor structure interfaces. Include the roller specification, loading information, material and coating requirements, quantity and installation location. Confirm assembly clearance and maintenance access before approving a replacement design.
Provide mounting centres, hole sizes, overall dimensions, roller shaft slots and support geometry. Include the roller drawing to check the interfaces.
Compatibility must be checked. Existing rollers can only be retained when their shaft ends, dimensions and condition suit the proposed frame and operating duty.
The website lists a galvanized offset trough roller frame. Confirm the required configuration, coating specification and current availability for your enquiry.
Email the frame and roller drawings, quantity and coating requirements to [email protected].
WhatsApp: +86 156 1588 7895
Website: www.x-conveyor.com
Conveyor Bracket category; Galvanized Offset Trough Roller Frame existing page; Troughing Idler Sets; Conveyor Idler category; Contact Us.
Use front and side frame photographs plus a mounting drawing. Suggested alt text: Conveyor idler frame showing mounting holes and roller shaft slots.
Use this copy to improve the existing Conveyor Roller Frame page. Remove descriptions that incorrectly give stationary frames roller sealing or rotation characteristics. Confirm frame types, material grades, coatings, load calculations and complete-set supply before publication.
