The head pulley is a key component in conveyor systems, located at the discharge end, used to drive the conveyor belt and facilitate material transfer. It is usually powered by a motor and gearbox, serving as the primary power source for the entire conveyor belt movement. The following is a comprehensive overview based on technical specifications, application scenarios, and maintenance practices:
1. Structure and Technical Features

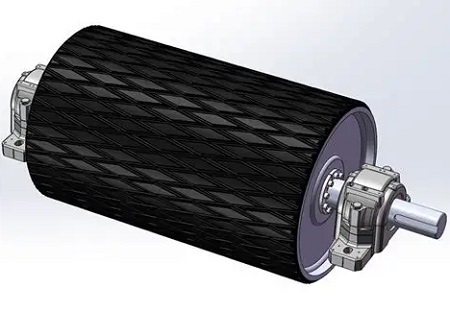

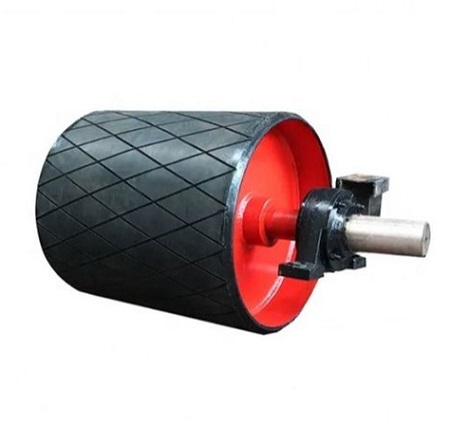

●Materials: The drum body is made of seamless steel pipes, the shafts are made of round steel, and high-quality self-aligning ball bearings are equipped. In terms of surface treatment, rubber lagging is applied through heat vulcanization or cold bonding processes to enhance friction and reduce wear; in abrasive environments, ceramic or diamond-grooved coatings can be used to further improve durability.
2. Core Functions
●Power transmission: Drives the conveyor belt through friction to ensure continuous material flow.
●Direction control: Guides the path of the conveyor belt and changes its direction at the discharge point.
●Load handling: Suitable for heavy-load scenarios in industries such as mining, cement, and agriculture.
3. Application Scenarios
●Conveyor systems: Used in mines, ports, and manufacturing industries to transport ores, coal, or packaged goods.
●Bucket elevators: Drive the lifting of grains or bulk materials in silos, with their shaft design optimized for torque and bending stress.
●Magnetic separation field: Used in recycling and food processing to remove ferrous contaminants from products such as plastics and grains.
4. Maintenance and Lifecycle
●Routine inspection: Weekly checks are required for bearing lubrication, temperature monitoring, and conveyor belt alignment.
●Component replacement:
Bearings: Disassembly/installation using hot oil bath to reduce downtime.
Lagging: When rubber or ceramic lagging is worn, it needs to be replaced in time to maintain friction; advanced lathe cutting technology can simplify the lining removal process.
5. Comparison with Other Pulleys
●Tail pulley: Located at the start of the conveyor, it only provides tensioning function and does not drive the conveyor belt.
●Snub pulley: Increases the wrap angle of the conveyor belt on the head pulley to enhance friction, which is particularly critical in steep slope scenarios.
In summary, the design and performance of the head pulley are crucial to the efficiency of the conveyor system. Reasonable selection, regular maintenance, and integration of advanced functions such as magnetic separation and convex design can ensure optimal throughput and service life in various industrial scenarios.
-
