Straight warp textile conveyor belts (also called straight warp fabric core conveyor belts) feature a unique warp-weft weaving structure—with warp yarns aligned straight along the conveying direction and weft yarns interwoven transversely. This design gives them significant advantages over traditional conveyor belts (such as steel cord belts, conventional canvas belts, PVC belts, and polyester belts) in tear resistance, adaptability, and cost-effectiveness. Their distinct structural and material properties make them ideal for fields like mining, quarrying, and bulk material conveying—scenarios where traditional belts often fail prematurely.
1. Structural Design: The Core of Cut and Tear Resistance

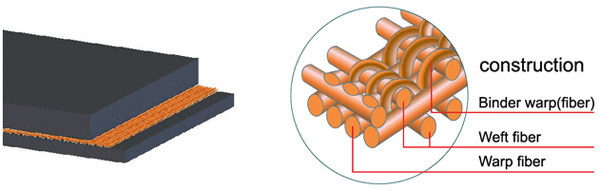

The key innovation of these belts lies in their straight warp fabric structure:
Warp yarns: High-strength fibers (e.g., aramid, polyester) are arranged completely straight and parallel along the belt’s length. This eliminates the "crimp" in traditional woven fabrics, maximizing load-bearing efficiency and reducing tension-induced elongation.
Weft yarns: Transverse fibers (e.g., nylon) are layered perpendicular to warp yarns, providing lateral stability to prevent transverse tearing.
Interlocking mechanism: Connecting yarns interweave between warp and weft, locking them into a rigid structure that evenly disperses stress and stops crack spread.
This structure delivers 2–3 times better tear resistance than traditional multi-layer belts, making it perfect for conveying sharp or abrasive materials like rocks, scrap metal, or glass.
2. Low Elongation and High Stability: Ideal for Long-Distance/High-Tension Conveying
Straight warp belts excel in low elongation and high stability, suiting long-distance or high-tension needs:
Low elongation: They exhibit minimal creep (elongation under sustained load), reducing the need for frequent tension adjustments.
Impact resistance: Their rigid structure absorbs impacts from falling debris or heavy loads, preventing punctures and delamination.
Durability: Reduced wear extends their service life to 2–3 times that of traditional belts in high-demand scenarios.
Notably, low elongation maintains stable tension, cutting deviation and edge wear (e.g., deviation reduced from ±150mm to ±30mm in cases). They match steel cord belts in stability but are 40% lighter (same specification), lowering drive motor load and saving 10–15% in annual electricity.
3. Strong Material Compatibility: Adapting to Extreme Environments
These belts offer flexible material combinations to handle extreme conditions (high/low temperatures, corrosion, etc.):
Core fibers: Aramid (temperature resistance), carbon fiber (antistatic properties), or glass fiber (high-temperature tolerance) can be used.
Covering layers: Polyurethane (wear-resistant), nitrile rubber (oil-resistant), or ceramic coatings (high-temperature resistant) adapt to diverse scenarios.
Examples include: glass fiber cores with ceramic coatings (withstanding >300℃ for steel slag conveying); cold-resistant rubber versions (adapting to -40℃ polar environments); and carbon fiber-embedded belts (antistatic, surface resistance <10⁹Ω) for explosive settings like coal mines or waste treatment.
4. Lightweight + Flexibility: Reducing Equipment Load and Path Restrictions
With fiber cores, these belts weigh only 60–70% of steel cord belts of equal strength. Their high flexibility adapts to complex paths (bends, inclines)—e.g., replacing metal rollers in tempering furnaces for arc conveying.
This flexibility reduces equipment restrictions on conveying paths, cutting installation costs (e.g., 30% savings by replacing rollers in cases). In short, multi-turn lines (e.g., electronic waste sorting), their light weight also lessens drive wheel wear, extending equipment life.
5. Low Maintenance Costs: Easy Local Repairs
Thanks to a modular fabric design, local damage (e.g., edge tearing, surface scratches) can be quickly fixed with mechanical fasteners—no need for full replacement.
Repairing damaged parts takes just 30 minutes, slashing downtime by 80%. The fabric layer also stops damage from spreading, doubling or tripling service life compared to ordinary belts (e.g., ore conveying life extended from 6 months to 2 years).
6. Applicable Scenarios: Where Traditional Belts "Fail"
Straight warp belts outperform traditional ones in:
Mining/quarrying: Conveying sharp-edged crushed ores or gravel; serving as feed belts under primary crushers (extreme impact zones).
Waste/recycling: Handling mixed waste with metal fragments or glass.
Construction: Moving aggregates, concrete blocks, or demolition waste.
Power generation: Conveying highly abrasive coal or biomass.
7. Selection and Maintenance Tips
Match strength to load: Choose belts with minimum tensile strength (e.g., 2000 N/mm for aramid-based belts) exceeding peak application tension.
Consider drum diameter: Thicker belts need larger drums to avoid excessive bending stress that weakens the core.
Regular inspection: Check for cuts, wear, or delamination (especially at joints). Use X-ray or visual tools to detect hidden damage.
In essence, straight warp textile conveyor belts’ advantages stem from the synergy of "structure-material-performance": high-density straight warp yarns boost tear/tensile resistance; diverse materials adapt to extremes; and lightweight flexibility reduces system load. For tough jobs—conveying sharp materials (mining, scrap steel), enduring extreme temperatures (steel plants, polar mines), handling long-distance high tension (coal mines, power plants), or navigating complex paths (waste sorting, glass conveying)—they stand as a superior alternative to traditional conveyor belts.
-
