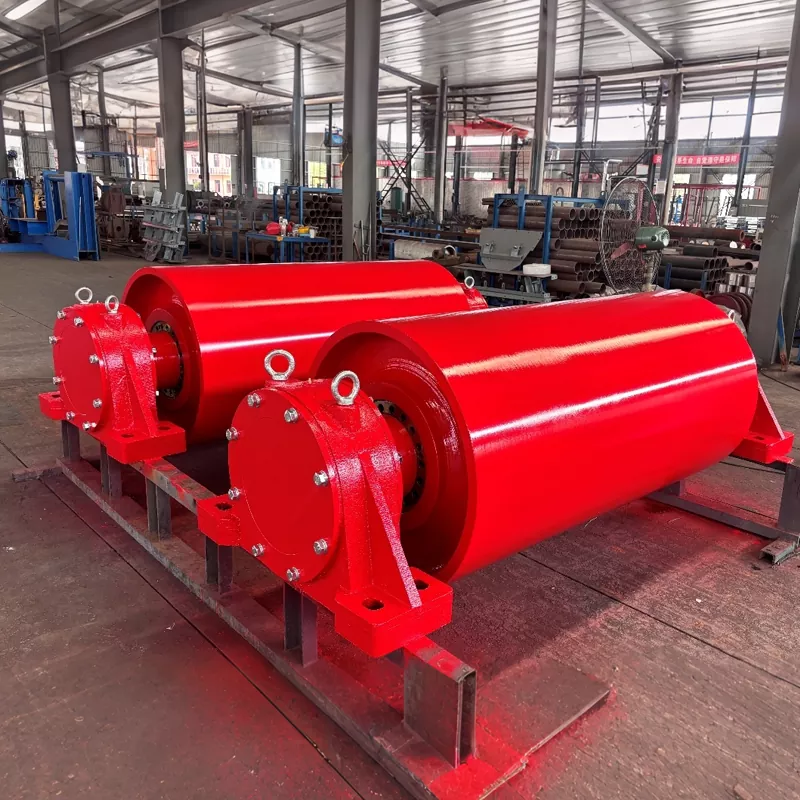

Take Up Pulley

Take up pulley, also named as tension pulley, which is a key component of belt conveyor systems. Which is  mounted on the tightening device and can move to adjust the tension of the conveyor belt.

The pulley body is made from thick steel plate. Options include smooth steel surface or rubber lagging coating. Rubber lagging increases friction, resist belt slipping and protects the conveyor belt surface.which is fitted with heavy-duty bearing assemblies to guarantee stable rotation under continuous heavy load.

Application & Installation

Take up pulley is normally installed at the tail section of belt conveyors, or on the return path for long-distance conveyors. It matches screw take-up, gravity take-up or hydraulic take-up units.

Widely used in mining, quarry, cement plant, grain handling, port and bulk material transportation industries. It works together with conveyor idlers, drive pulley, tail pulley and other conveyor parts.

Common Available Dimensions

· Diameter: 102mm, 127mm, 152mm, 194mm, 219mm, 240mm, 320mm, 400mm, 500mm, 630mm, 800mm

· Belt width matching: 400mm, 500mm, 650mm, 800mm, 1000mm, 1200mm, 1400mm, 1600mm, 1800mm, 2000mm

· Shaft diameter: Customized according to load requirement

Note: Custom sizes are acceptable upon client drawings or technical requirements.

Features

· High mechanical strength, wear resistant and long service life

· Stable rotation, low noise

· Multiple size and surface treatment options available

· Easy installation and maintenance

· Common Sizes Diameter: 102mm-800mm

· Matching belt width: 400mm ~ 2000mm

· Custom dimensions are supported.

· Suitable for bulk material conveying in mining, cement, grain and port industries. Robust structure, reliable performance and easy maintenance.
