A chevron belt is a specialized belt commonly used in industrial conveying and power transmission. It is named for the regular "herringbone" or "chevron-shaped" raised patterns on its surface. It is mainly divided into two categories: chevron patterned conveyor belts and herringbone timing belts, which are widely used in material handling and precision transmission applications.

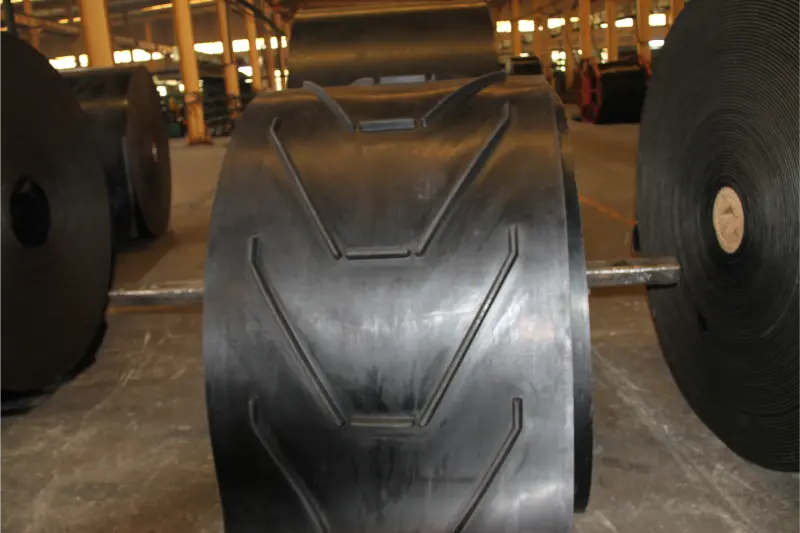

The chevron patterned conveyor belt is the most common type. It consists of an elastic base belt with chevron patterns on the surface. The patterns are available in open and closed types, with high, medium and low profiles. It is mainly made of wear-resistant rubber, reinforced with canvas, nylon or polyester frameworks inside to enhance tensile strength and deformation resistance. Its core advantages are anti-slip performance and high-angle conveying. The chevron patterns increase friction with materials, enabling conveying at an inclination of 30° to 40°, effectively preventing the sliding of particles, powders, small bulk materials and bagged goods, and avoiding material spillage and blockage.The other type, the herringbone timing belt, features a symmetrical staggered helical tooth structure with herringbone-arranged teeth. During meshing, axial forces cancel each other out, ensuring stable operation without lateral movement and precise alignment without retaining rings. It boasts a transmission efficiency of over 98%, lower noise than ordinary straight-tooth timing belts, higher load capacity and longer service life, making it suitable for high-speed and precision transmission requirements.
In industrial scenarios, chevron patterned conveyor belts are core components in mining, coal, building materials, grain, port logistics, used for uphill feeding, loading and unloading, handling ores, sand, cement, grain, chemical fertilizers and other materials. They combine versatility and durability, adapting to harsh working conditions such as dust, humidity and heavy loads. Herringbone timing belts are mostly used in CNC machine tools, automated production lines, packaging machinery, medical and office equipment to meet the requirements of quiet, high-speed and precise transmission.Compared with flat conveyor belts, chevron belts solve the problems of slipping and material rolling during uphill conveying, improving conveying efficiency and space utilization. Compared with ordinary timing belts, the herringbone tooth structure reduces vibration and noise, extends the service life of bearings and pulleys, and lowers maintenance costs. During selection, pattern height, tooth specifications, belt width and thickness must match the working inclination, material characteristics and transmission parameters to ensure stable operation.
With a simple structure achieving high efficiency, chevron belts are key components in industrial automation and logistics transportation. From heavy-duty mining to precision equipment, they support production operations with reliable performance, becoming indispensable basic parts in the industrial system and reflecting the practicality and wisdom of industrial design.
-
